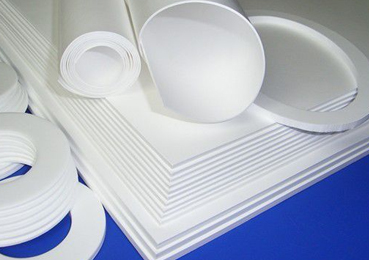

Application Field : Gasket for static flange joints in main force line for cutting or punching gasket in free forms.
• Circular gaskets for standerd DIN - and ANSI - flanges.
• Rectangular gaskets for frames.
• Free shapes of seals for head of pumps, tube bundle heat exchangers, valves and accessories.
• Very easy to cut form gaskets just in time at on-site maintenance.
Special Features :
• Best adaptation on uneven surfaces and affected sealing faces.
• For sealing of stress sensitive material like glass lined steel, glass, ceramic.
• Long lasting gasket solution for extreme aggressive media.
Approvals and Tests :
• BAM - tasted for use with oxygen
• FDA - conformity
• EC 1935/2004 tasted
• TUV controlled and certificated according ISO 9001
• DIN EN 13555 gasket specific data tested

PTFE Expanded Universal F premium - ePTFE - Joint Sealant

PTFE Expanded Universal F premium ePTFE joint Sealant consists of virginal, expanded Teflon PTFE
Application Field :
• Flanges - All types of flanges in frictional connection.
• Components - e.g. pipes, component and machine housings, pumps, apparatus, compensators, ventilation and air-conditioning systems.
• Materials - e.g. FRP, glass, ceramic, graphite, aluminum, steel and rubber-coated materials.
Tests and Certifications:
• BAM Test no. II 1102/2008 - for the use of flanges from steel, copper and copper alloys with flat sealing areas and grooved flanges, up to oxygen pressure of 100 bar and temperatures up to 60°C
• DVGW Reg.- no. DG-5127AQ1282 - Sutiable for gas supply applications up to 16 bar (1,6 MPa) and temperatures from - 10 °C to +70°C
• TUV Certificate No. 08 08 9020 001 - Product characteristics and production, voluntarily examined and monitored by TUV SUD

PTFE Expanded High Density - E - ePTFE Seals

PTFE Expanded High density - E - ePTFE joint sealants consist of pure virginal expanded PTFE
Examples Of Application : • Flanges - Al type of flanges in frictional connection.
• Components - e.g. stirring machines, pipelines, component and machine housings, pumps, vessel openings, stress susceptible apparatus and flanges, ventilation and air conditionings systems, heat exchangers.
• Flange materials - e.g. FRP, enamel, glass, ceramics, graphite, aluminium, steel, rubber coated materials.
Tests and Certifications :
• TUV Certifiket no. 08 08 9020 001 - Product Characteristics and production, voluntarily examined and monitored by TUV suddeutschland.

PTFE Expanded Tape ePTFE - Gaskets

PTFE Expanded Tape is the highest grade gasket tape in the field of expanded PTFE materials
Tests and Certifications : • TA-Luft / VDI 2440 - Leakagerate and long term properties tested following the German clean-Air-Act (TA-Luft) and certified by TUV SUV (< 10mbar*I/s*m). Blow out safety > 100 bar (acc. to TUV - standard).
• Quality Management - The superior quality of our product is due to our Quality management system according to DIN EN ISO 9001 with continuous improvement being one of our fore most goles.
Examples of Application :
• Flanges - All types of flanges in frictional connection.
• Components and Materials - using KWO MultiTex Tape 3mm.
Big pressure vessels, flanges with wide diametres and considerable unevenness, tubular and other heat exchangers, steel flanges Usign KWO MultiTex Tape 6+9mm
enamel lined column and drum flanges, Components made of glass, caramic, graphite or other fragile materials.

PTFE Expanded DK - Tape

PTFE Expanded DK-Tape especial designed gasket-tape for oval inspection ports of boilers and tanks. Lasting gasket for the high demand of safety and tightness up to 250 ° and 40bar pressure.
Application Field : • Steam Boilers and tanks - Manhole doors from steam boilers as well as inspection ports in boilers and tanks of all common sizes and manufactures.
Form Of Delivery :
• Size cross seaction 15×6mm for on site installation with double side tape for easy installation
• DK - Tape 15mm wide fit on narrow flanges of handhole-lids as well as on wide 25mm flanges of manhole doors.
• Delivered on spools of 5m, 10m and 15m in cardbord boxes, packed with installation instruction.
Approvals and Tests :
• TRD 401 / VdTUV Dichtung 100
type tasted according to VdTUV instruction TRD 401/Dichtung100 Test class D. Registration No. TUV.D.11-008.d

6. PTFE Expanded DK Ring - Steam boiler Gasket

PTFE Expanded DK Ring especial designed gasket for Oval inspection ports of boilers and tanks. Lasting gasket for the high demand of safety and tightness up to 250°C and 40bar pressure.
Application Field : • Steam boilers and Tanks - Manhole doors from steam boilers as well as inspection ports in boilers and tanks of all common sizes and manufactures.
Form Of Delivery :
Delivered as ready to use gasket ring, single packed with installation instruction. Gasket ring are available from stock in the following standard dimensions :
• 80 × 120 × 15 220 × 320 × 25.
• 100 × 120 × 15 300 × 400 × 25.
• 115 × 165 × 15 320 × 420 × 25.
• 150 × 200 × 15 350 × 450 × 25.
Other Dimensions are avaiable on request
Approvals and Tests :
• TRD 401 / VdTUV Dichtung 100
type tasted according to VdTUV instruction TRD 401/Dichtung100 Test class D. Registration No. TUV.D.11-009.d
